About This Item
Description

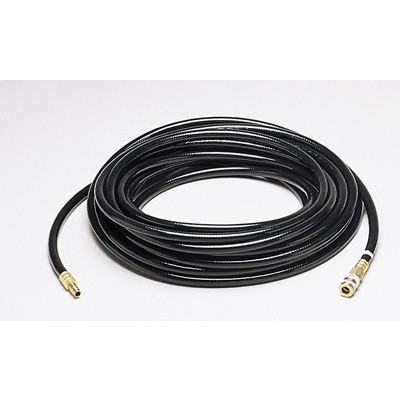

Allegro's High Pressure Airline Hoses are NIOSH approved when used with Allegro's Supplied Air Respirators., Constructed from rugged polyvinyl chloride and reinforced with braided polyester yarn. These hoses provide a temperature range from -20 DegF to 150 Deg F (-28.8 DegC to 65.5 DegC). Manufactured with brass Hansen quick-connect couplers., Maximum Pressure is 185 psi @ 70 DegF (12.76 bar@ 21.1 DegC), 50' in length., Product Features: CONSTRUCTION: Inner polyvinyl chloride Reinforced braided polyester yarn Outer black polyvinyl chloride 80 Shore A-Durometer SPECIFICATIONS: Temperature Range: -20 DegF to 150 DegF (-28.8 DegC to 65.5 DegC) Inner Diameter: 3/8” (0.375”) (.95 cm) Outer Diameter: 19/32” (.0594”) (1.5 cm) Maximum Pressure: 185 psi @70 Deg F (12.6 bar@ 21.1 DegC) AIR FITTINGS: Manufacturer: Hansen Design: Industrial Interchange Type: Quick-Connect Air Fitting Size ¼” (.63 cm) nominal Coupler: 1100 Series, chrome plated brass (P/N 9700-74) Plug: 10 Series, steel (P/N 8400-04A)
- CONSTRUCTION:
- Inner polyvinyl chloride
- Reinforced braided polyester yarn
- Outer black polyvinyl chloride
- 80 Shore A-Durometer
- SPECIFICATIONS:
- Temperature Range: -20 DegF to 150 DegF (-28.8 DegC
- to 65.5 DegC)
- Inner Diameter: 3/8” (0.375”) (.95 cm)
- Outer Diameter: 19/32” (.0594”) (1.5 cm)
- Maximum Pressure: 185 psi @70 Deg F (12.6 bar@ 21.1 DegC)
- AIR FITTINGS:
- Manufacturer: Hansen
- Design: Industrial Interchange
- Type: Quick-Connect
- Air Fitting Size ¼” (.63 cm) nominal
- Coupler: 1100 Series, chrome plated brass (P/N 9700-74)
- Plug: 10 Series, steel (P/N 8400-04A)
Product Features
Extended Information
Technical Specs
