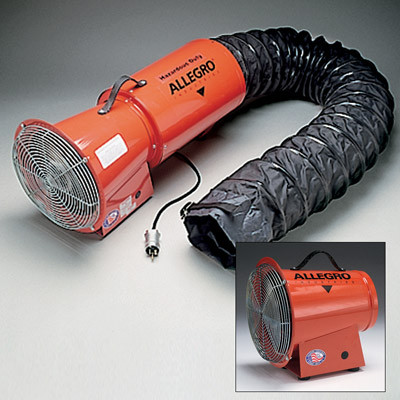

Allegro 9513-05 AC Axial Explosion-Proof Blower, 1/3 hp, includes 115V plug

SKU: 20A9513-05

Weight: 50lbs

List $2,405.29
$1,511.90
Free Shipping

on orders $1,000 or more

In Stock

Usually Ships In 3-5 Business Days

Request a Quote Contact Us
Adding to cart… The item has been added

About This Item

Description

Electric, explosion-proof motor is UL listed. Single-phase motor includes NEMA rated 115V plug (included). It offers tough steel construction and meets Class I, Divisions 1 and 2, Groups C and D and Class II, Divisions 1 and 2, Groups F and G Hazardous Location Requirements. , Product Features: CONSTRUCTION: Epoxy powder coated in safety orange Flange on intake side (for optional inlet adapter) 18 gauge steel housing with welded motor mount construction Steel/chrome plated grill Carry handle made of 3-ply rubber belting Equipped with four rubber feet MOTOR: HP: 1/3 HP Voltage/Hz: 115 V AC, 60Hz, Single Ø RPM: 3250 Current Draw: 2.2 A Cord: 25' (7.62m) SJOOW 18/3 AWG 300V, medium duty Plug: NEMA 115V, 20 Amp, “ECP” type FAN: Aluminum hub Anti-Static glass reinforced Polyamide (PAGAS) six blade fan Mounted 1 5/8” (4.12cm) from grill for safety and a grill gap of 5/16” (.79cm) DUCTING: Black single-ply, neoprene coated, vinyl/polyester material, temperature resistant up to 250 DegF (121.1 DegC) Retractable, non-collapsible design, Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs

  • CONSTRUCTION:
  • Epoxy powder coated in safety orange
  • Flange on intake side (for optional inlet adapter)
  • 18 gauge steel housing with welded motor mount construction
  • Steel/chrome plated grill
  • Carry handle made of 3-ply rubber belting
  • Equipped with four rubber feet
  • MOTOR:
  • HP: 1/3 HP
  • Voltage/Hz: 115 V AC, 60Hz, Single Ø
  • RPM: 3250
  • Current Draw: 2.2 A
  • Cord: 25' (7.62m) SJOOW 18/3 AWG 300V, medium duty
  • Plug: NEMA 115V, 20 Amp, “ECP” type
  • FAN:
  • Aluminum hub
  • Anti-Static glass reinforced Polyamide (PAGAS) six blade fan
  • Mounted 1 5/8” (4.12cm) from grill for safety and a grill gap of 5/16” (.79cm)
  • DUCTING:
  • Black single-ply, neoprene coated, vinyl/polyester material, temperature resistant up
  • to 250 DegF (121.1 DegC)
  • Retractable, non-collapsible design, Class 1 hard drawn spring steel wire helix that meets
  • ASTM 227 specs
Prop 65 Warning: Product's may contain one or more substances or chemicals known to the State of California to cause cancer, birth defects, or reproductive harm.
