About This Item
Description

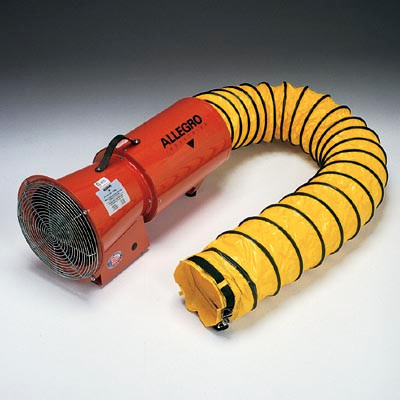

Engineered for convenience, this 8" axial blower is an all-in-one ventilation system. The design allows ducting to collapse into a built-in canister for easy storage. The unit can also be stored vertically to use a minimum amount of space., Includes blower, built-in storage canister and 25 feet of ducting. Certified to CSA STD C22.2 No 113. Air delivery certified CEESI., Blowers offered in 220V/50Hz., Product Features: CONSTRUCTION: Epoxy powder coated in safety orange Flange on intake side (for optional Inlet adapter) 20 Gauge cold rolled steel housing with welded motor mount construction Bottom panel enclosed to protect electrical components Glass reinforced polypropylene (PPG) six blade fan with aluminum hub Steel/chrome plated grill Carry handle made of 3-ply rubber belting Equipped with five rubber feet MOTOR: HP: 1/3 HP 220V AC, Single ? CSA Approved Max RPM: 3200 (loaded at 220 Volts, 50 Hz) Current Draw: 1.6 A (loaded at 220 Volts, 50 Hz) Capacitor: 7.5 MFD 370V AC Cord: 20' (6.09m) AWG 16/3 SJOOW 90C 300V medium duty Switch: Inline ON/OFF integrated on cord Plug: Not included DUCTING: (included with blower) Single-ply lightweight vinyl with polyester, PVC coated 180 DegF (82.22 DegC) temperature resistant Meets UL 94V-O flammability specifications Non-collapsible retractable design Class 1 hard drawn spring steel wire helix, ASTM 227 Spec. Yellow color with black weather-strip, and integrated nylon strap at both ends
- CONSTRUCTION:
- Epoxy powder coated in safety orange
- Flange on intake side (for optional Inlet adapter)
- 20 Gauge cold rolled steel housing with welded motor
- mount construction
- Bottom panel enclosed to protect electrical
- components
- Glass reinforced polypropylene (PPG) six blade fan with
- aluminum hub
- Steel/chrome plated grill
- Carry handle made of 3-ply rubber belting
- Equipped with five rubber feet
- MOTOR:
- HP: 1/3 HP 220V AC, Single ? CSA Approved
- Max RPM: 3200 (loaded at 220 Volts, 50 Hz)
- Current Draw: 1.6 A (loaded at 220 Volts, 50 Hz)
- Capacitor: 7.5 MFD 370V AC
- Cord: 20' (6.09m) AWG 16/3 SJOOW 90C 300V medium duty
- Switch: Inline ON/OFF integrated on cord
- Plug: Not included
- DUCTING: (included with blower)
- Single-ply lightweight vinyl with polyester, PVC coated 180 DegF (82.22 DegC) temperature
- resistant
- Meets UL 94V-O flammability specifications
- Non-collapsible retractable design
- Class 1 hard drawn spring steel wire helix, ASTM 227 Spec.
- Yellow color with black weather-strip, and integrated nylon strap at both ends
