About This Item
Description

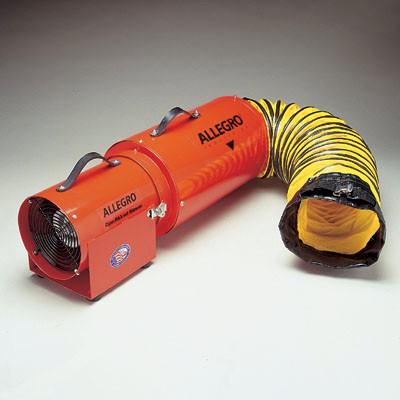

This lightweight and compact COM-PAX-IAL blower can be an all-in-one ventilation system sold with quick-connect 15' or 25' ducting canister which attaches quickly without tools with Cam-lock latches., 15' Canister conversion kit (use with 9534 & 9537), Product Features: CONSTRUCTION: Complete unit epoxy powder coated orange 15 gauge cold rolled steel housing with welded motor mount construction 20 gauge steel canister Available with 15'(4.57m) or 25'(7.62m) ducting and canister Enclosed wide base for greater stability Steel/chrome plated grill Carry handle made of 3-ply rubber belting Equipped with four rubber feet MOTOR: HP: 1/3 HP Certifications: UL Recognized, CSA Certified Volts: 115 AC Single Ø RPM: 3200 (Loaded at 120 Volts, 60 Hz) Current Draw: 3.6A (Loaded at 120 Volts, 60 Hz) Cord: 6' (1.82m) SJOOW 16/3 AWG neoprene, 300V medium duty Plug: NEMA 5-15 125V AC DUCTING: Retractable, non-collapsible design Single-ply, PVC coated, vinyl and polyester materials, temperature resistant up to 180 DegF (82.2 DegC) Yellow color with black weather-strip and integrated nylon straps Class 1 hard drawn spring steel wire helix that meets ASTM specs FAN: Glass reinforced polypropylene (PPG) six blade fan with aluminum hub
- CONSTRUCTION:
- Complete unit epoxy powder coated orange
- 15 gauge cold rolled steel housing with welded motor mount construction
- 20 gauge steel canister
- Available with 15'(4.57m) or 25'(7.62m) ducting and canister
- Enclosed wide base for greater stability
- Steel/chrome plated grill
- Carry handle made of 3-ply rubber belting
- Equipped with four rubber feet
- MOTOR:
- HP: 1/3 HP
- Certifications: UL Recognized, CSA Certified
- Volts: 115 AC Single Ø
- RPM: 3200 (Loaded at 120 Volts, 60 Hz)
- Current Draw: 3.6A (Loaded at 120 Volts, 60 Hz)
- Cord: 6' (1.82m) SJOOW 16/3 AWG neoprene, 300V medium duty
- Plug: NEMA 5-15 125V AC
- DUCTING:
- Retractable, non-collapsible design
- Single-ply, PVC coated, vinyl and polyester materials, temperature resistant up to
- 180 DegF (82.2 DegC)
- Yellow color with black weather-strip and integrated nylon straps
- Class 1 hard drawn spring steel wire helix that meets ASTM specs
- FAN:
- Glass reinforced polypropylene (PPG) six blade fan with aluminum hub
Product Features
Extended Information
Technical Specs
